滑順靜音
CHERRY MX SILENT RED
與 CHERRY MX RED 紅軸 相同，CHERRY MX SILENT RED 靜音紅軸 也具備線性觸發特性。 透過 CHERRY 專利的靜音阻尼技術，能有效降低按鍵操作時的聲音。 憑藉輕盈的彈簧力道與柔和的觸發手感，這款搭載靜音技術的鍵軸成為追求安靜與舒適操作體驗的明智之選。
重點特色
- 線性觸發特性
- 操作力：45 cN
- 預行程：1.9 毫米
- 總行程：3.7 毫米
- 超過五千萬次敲擊壽命
- 已潤滑
- 靜音設計
The Original
Inside CHERRY MX SILENT RED
1 UPPER HOUSING
Upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX keyswitch’s switching mechanism housing.In the "MX RGB" version, CHERRY Refract technology is integrated into the component: A computer-calculated lens set that uses active light refraction to direct the illumination from the SMD LED on the circuit board into the keycap without loss.
2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the Cherry MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the stem. The stem of MX Silent switches is made of two components and contains integrated, patented noise reduction technology.This pink switching slide is responsible for the linear switch characteristics of the CHERRY MX SILENT RED. Due to the straight TLS surface, the switch triggers directly.
3 GOLD CROSSPOINT CONTACT
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch and the basis of its incredible reliability and durability. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This unique CHERRY innovation and ornate gold-plating make the electrical contact enclosure self-cleaning and gives the keyswitch permanent protection against corrosion, guaranteeing the keyswitch for more than 50 million operations.4 PRECISION COIL SPRING
The keyswitch’s coil spring pressure resistance is the CHERRY MX’s sparring partner for your fingers. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force.5 HOUSING BASE
Dual-functional, the housing base component is made of plastic polymer and glass fibre. The inner part forms the mounting for the CHERRY MX keyswitch’s switching mechanism. The outer part is both the base and mounting surface for CHERRY’s mechanical keyboards.In the "MX RGB" version, the lower part of the housing is translucent and has a recess for the SMD LED on the circuit board.
More about the original
CHERRY MX SILENT RED
Like the CHERRY MX RED the CHERRY MX SILENT RED is featured by a linear switching characteristic as well. The operating noises are reliably minimized by a patented damping. The switch with the silent CHERRY MX technology establishes itself as a wise choice regarding to its low spring force and soft actuation.

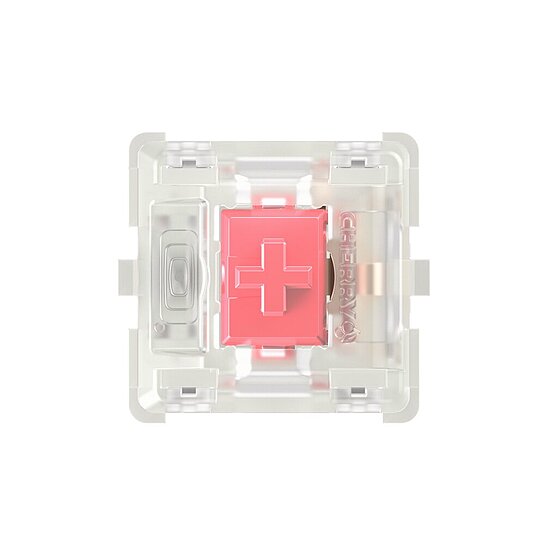

CHERRY MX SILENT RED
Key benefits
- Engineered and Made in Germany
- CHERRY MX2A SILENT RED switch: Linear actuation without pressure point and reduced typing sound
- Industry-leading CHERRY Gold Crosspoint technology
- Factory-applied, premium-grade lubricant
- Noise-reducing barrel spring design
- Diamond polished stem and spring guidance
- Glide-optimized stem guidance ribs
- Short bounce time for high switching frequency (such as for fast typing)
- Self-cleaning contacts
- Switch resistant to dust and dirt
- Over 50 million keystrokes with no loss of quality guaranteed
| CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
|---|---|---|---|
| MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
| MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
| MX BLOSSOM | featherlight and direct | linear (no click) | > 100 mil. |
| MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
| MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
| MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
| MX FALCON | heavy-tactile - heavy-satisfying | tactile (no click) | > 50 mil. |
| MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
| MX HONEY | tactile and silent | tactile (no click) | > 50 mil. |
| MX NORTHERN LIGHT | ultra-Smooth and silent | linear (no click) | > 50 mil. |
| MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
| MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
| MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
| MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
| MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
| MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
CHERRY MX are the best switches on the market
屬性
| Plunger colour | 紅色 |
|---|---|
| 操作特性 | 線性 |
| 操作力 | 45 cN |
| 初始力 | 30 cN |
| 最終力 | 100 cN |
| 初始行程 | 1,9 mm |
| Actuator travel | 3,7 mm |
| 接觸系統 | MX Gold Crosspoint |
