專注、強勁且醒目
CHERRY MX CLEAR
作為無段落聲的段落軸，CHERRY MX CLEAR 是 CHERRY MX Brown 與 CHERRY MX GREY 的姊妹款。 憑藉其獨特的觸發特性，成為棕軸與灰軸的完美核心搭配。 這款堅固耐用且具獨特風格的軸體，是鍵盤愛好者間深受喜愛的選擇。
重點特色
- 段落觸發特性
- 操作力：65 cN
- 預行程：2.0 毫米
- 總行程：4.0 毫米
- 超過五千萬次敲擊壽命
- 無段落聲（無咔嗒聲）
The Original

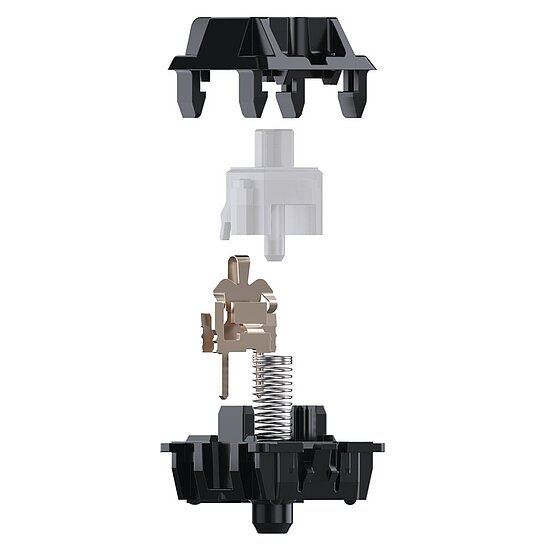

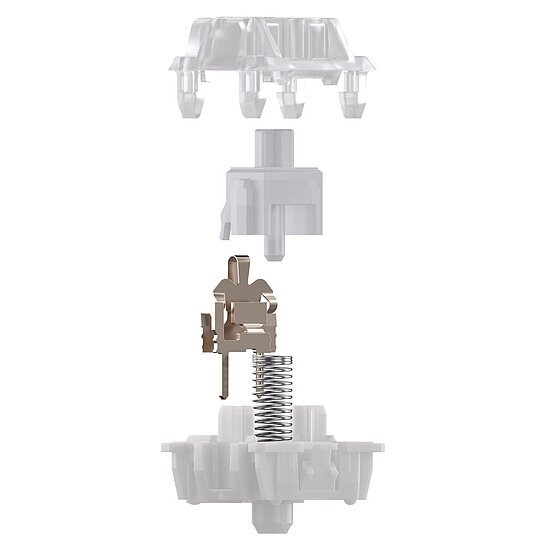

Inside CHERRY MX CLEAR
1 UPPER HOUSING
Upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX keyswitch’s switching mechanism housing.In the "MX RGB" version, CHERRY Refract technology is integrated into the component: A computer-calculated lens set that uses active light refraction to direct the illumination from the SMD LED on the circuit board into the keycap without loss.
2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the Cherry MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the stem.This white switching slide is responsible for the tactile switch characteristics of the CHERRY MX CLEAR. Due to the bulge on the TLS Surface, the switch sends a noticeable feedback, which communicates the exact position of the trigger to the user.
3 GOLD CROSSPOINT CONTACT
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch and the basis of its incredible reliability and durability. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This unique CHERRY innovation and ornate gold-plating make the electrical contact enclosure self-cleaning and gives the keyswitch permanent protection against corrosion, guaranteeing the keyswitch for more than 50 million operations.4 PRECISION COIL SPRING
The keyswitch’s coil spring pressure resistance is the CHERRY MX’s sparring partner for your fingers. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force.5 HOUSING BASE

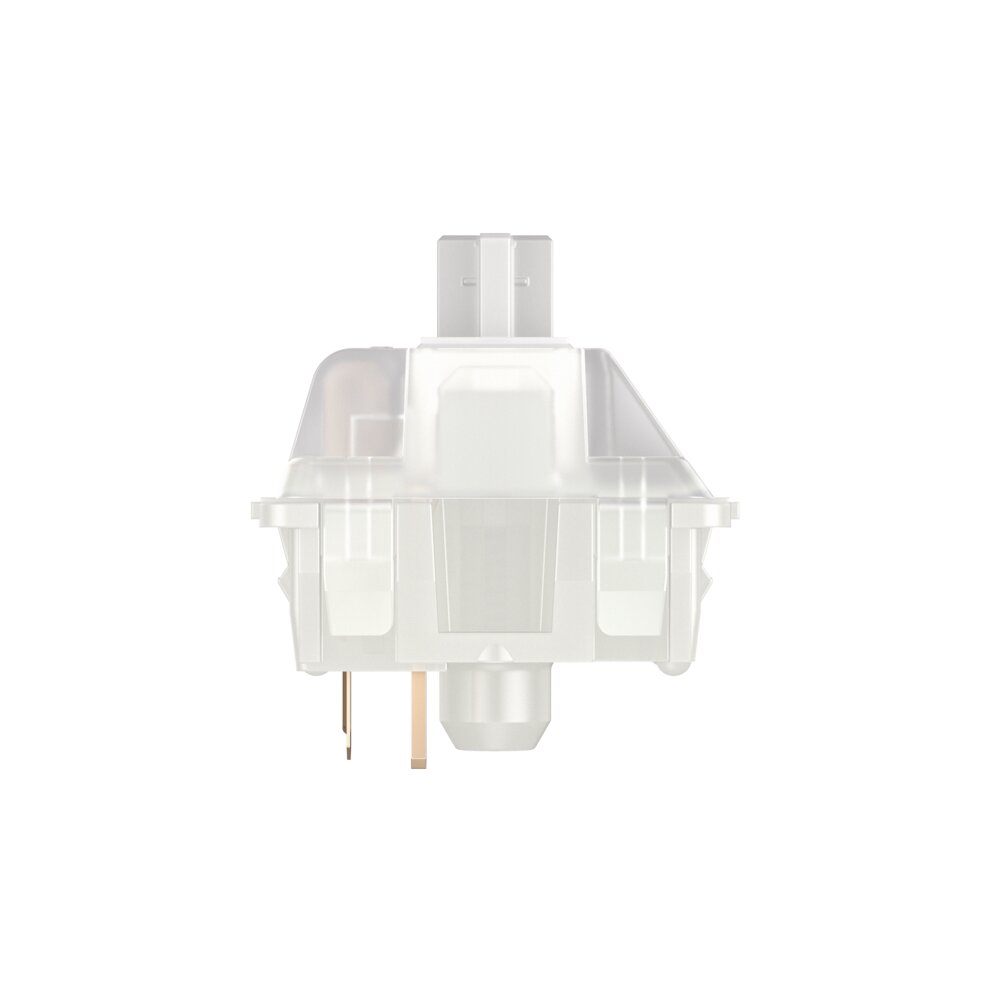

Dual-functional, the housing base component is made of plastic polymer and glass fibre. The inner part forms the mounting for the CHERRY MX keyswitch’s switching mechanism. The outer part is both the base and mounting surface for CHERRY’s mechanical keyboards.In the "MX RGB" version, the lower part of the housing is translucent and has a recess for the SMD LED on the circuit board.
More about the original

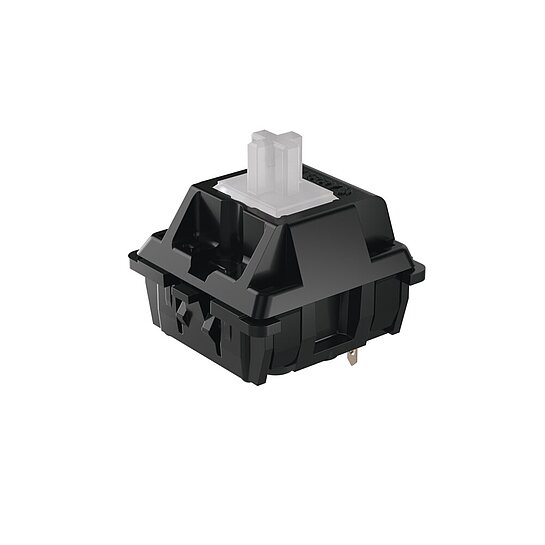

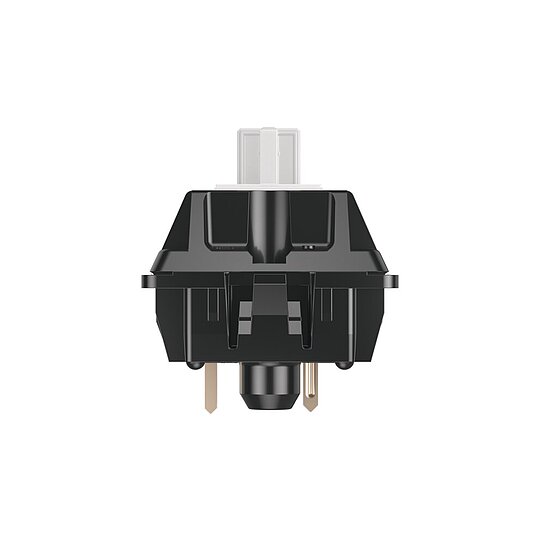

CHERRY MX CLEAR
As a tactile switch without a click, the CHERRY MX CLEAR is the sister model of the CHERRY MX BROWN and CHERRY MX GREY. Due to its actuation, it is the perfect centerpiece for its brown and grey equivalent. The robust exotic is a popular switch for enthusiasts.
CHERRY MX CLEAR
Key benefits
- Engineered and Made in Germany
- CHERRY MX CLEAR: With tactile pressure point
- Safe and long-lasting reliability of switching performance and characteristics
- High-precision mechanical key switch based on the MX standard
- World exclusive CHERRY Gold Crosspoint technology
- Short bounce time for high switching frequency (such as for fast typing)
- Self-cleaning contacts
- Switch resistant to dust and dirt
- Over 50 million keystrokes with no loss of quality
| CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
|---|---|---|---|
| MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
| MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
| MX BLOSSOM | featherlight and direct | linear (no click) | > 100 mil. |
| MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
| MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
| MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
| MX FALCON | heavy-tactile - heavy-satisfying | tactile (no click) | > 50 mil. |
| MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
| MX HONEY | tactile and silent | tactile (no click) | > 50 mil. |
| MX NORTHERN LIGHT | ultra-Smooth and silent | linear (no click) | > 50 mil. |
| MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
| MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
| MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
| MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
| MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
| MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
CHERRY MX are the best switches on the market
| 產品編號 | 固定針 | RGB | LED colour | LED diode | ||
|---|---|---|---|---|---|---|
|
MX1A-C1DN EAN: 數據表 |
無引腳- 面板安裝 (3 Pins) | 否 | 無LED | 二極體（型號：1N4148或等效） | |
|
|
MX1A-C1DW EAN: 數據表 |
帶引腳- PCB安裝 (5 Pins) | 否 | 無LED | 二極體（型號：1N4148或等效） | |
|
|
MX1A-C1GN EAN: 數據表 |
無引腳- 面板安裝 (3 Pins) | 否 | 綠色LED（IV= 10 mcd，典型值 / IF= 10 mA / VF= 2.2 V) | 無二極體 | |
|
MX1A-C1NA EAN: 4025112091797 數據表 |
無引腳- 面板安裝 (3 Pins) | 是 | 無LED | 無二極體 | |
|
|
MX1A-C1NN EAN: 數據表 |
無引腳- 面板安裝 (3 Pins) | 否 | 無LED | 無二極體 | |
|
|
MX1A-C1NW EAN: 4025112105838 數據表 |
帶引腳- PCB安裝 (5 Pins) | 否 | 無LED | 無二極體 |
