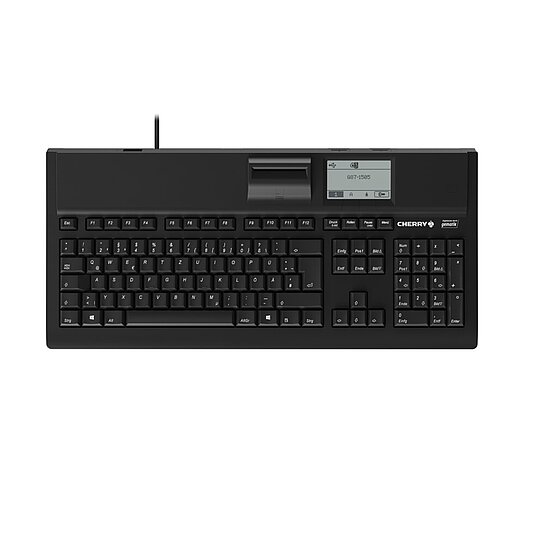

CHERRY eGK-Tastatur G87-1505
The CHERRY eGK keyboard G87-1505 with integrated card terminal, approved by gematik, is a reliable, space- and cost-saving solution for workplaces in the healthcare sector. Extensive protection against manipulation on the terminal is confirmed by the BSI certification. With the CHERRY software "eHealth USB-LAN Proxy" and the connection using just one USB cable, you save yourself the need for an external LAN interface as well as an additional power supply. The eHealth card terminal can therefore be put into operation quickly and easily without complex cabling in the network. The logical operation of the terminal in combination with the best writing comfort ensures speed and efficiency in the workplace. This means that the proven CHERRY quality will accompany you over the next few years and make your daily work easier, be it in doctor's offices or hospitals.
特長
- Smart & fast networked via USB
- Low energy consumption thanks to USB interface
- Simplest and intuitive operation
- Efficiency and convenience: keyboard terminal solution
- Card slots for eGK, HBA, SMC-B and gSMC-KT
- Use with gSMC-KT version 2.1 requires a firmware update (3.3.3). See details below.
- Graphical display for the terminal
- Secure PIN entry
- Keyboard: Approx. 20 million operations
- OPB1 approval (online telematics infrastructure)
- Highest security: BSI certification, gematik approval
- Card terminal: Approx. 300,000 mating cycles (approx. 10 years with 100 insertion cycles per day)
Note:
The use of the gSMC-KT version 2.1 with the eGK keyboard G87-1505 requires a firmware update (3.3.3).
You can download the firmware file in the download area - please follow the instructions in the separate installation guide:
仕様
| 保証 | 2年保証 |
|---|---|
| ソフトウェアサポート | USB LAN Proxy, eHealth Device Manager |
| キーキャップ材質 | ABS |
| キーの表示 | レーザーエッチング |
| キー数 | 105 |
| 調節可能な脚 | 一体型 |
| ステータスLED | なし |
| キーテクノロジー | ラバードーム |
| Service life per key (in million strokes) | 2,000万回 |
| スイッチング特性 | 直線的 |
| Keyboard format | フルサイズ（100%） |
| 一体型金属プレート | はい |
| Nキー同時入力 | いいえ |
| アンチゴースト | いいえ |
| キー暗号化 | いいえ |
| オペレーティングシステム | Linux, Mac OS, Windows 7, Windows 8, Windows 10, Windows 11 |
| System Requirements-Hardware | カード端末機能用CHERRYソフトウェア「eHealth USB-LAN Proxy, USB-A接続およびUSB対応オペレーティングシステム（Windows、LinuxまたはApple Mac OSなど） |
| 包装なしの製品の長さ | 470 mm |
| 包装なしの製品幅 | 220 mm |
| 包装なしの製品の高さ | 79 mm |
| 納入範囲 | キーボード, ショートマニュアル, ID-000スロット用スロットシール4枚 |
同梱物
- キーボード
- ショートマニュアル
- ID-000スロット用スロットシール4枚
