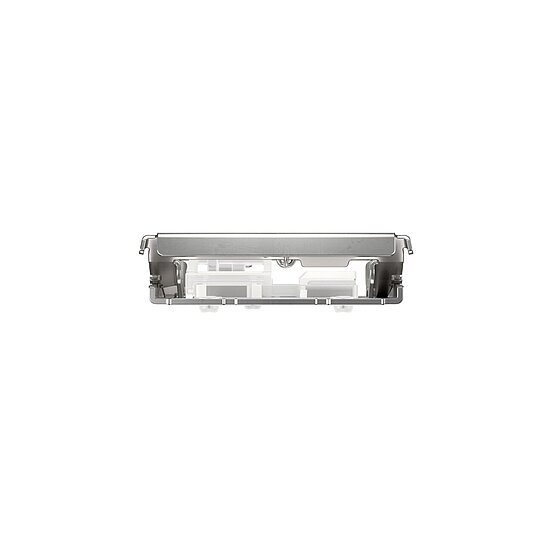

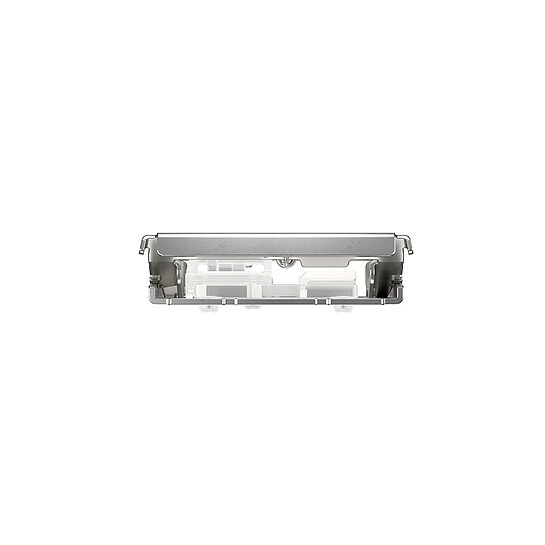

Ultra-low profile, focused and noticeable

CHERRY MX ULP TACTILE

The characteristics of the MX ULTRA LOW PROFILE TACTILE are not dissimilar to the MX Brown in that they also feature tactile feedback. Thanks to the noticeable actuation force, the short travel distance and the extremely low height, the switch is suitable for applications such as notebooks, where fast reactions as well as reliable inputs in limited spaces are important.

Destacados

  • Tactile switching characteristics
  • 65 cN operating force
  • 0.8 mm pre travel
  • 1.8 mm total travel
  • > 50 mil. keystrokes
  • No ClicK
The Original

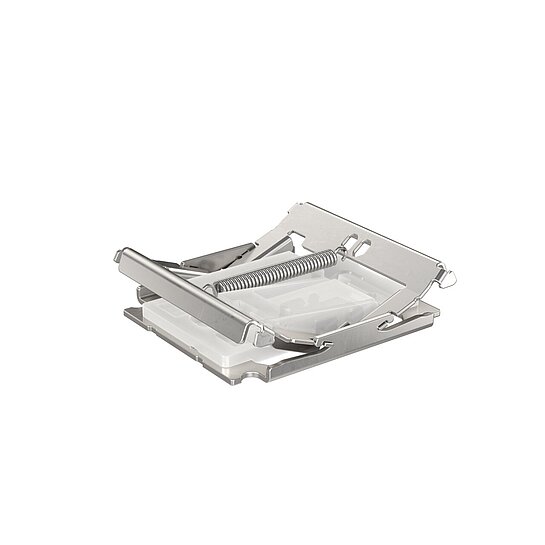

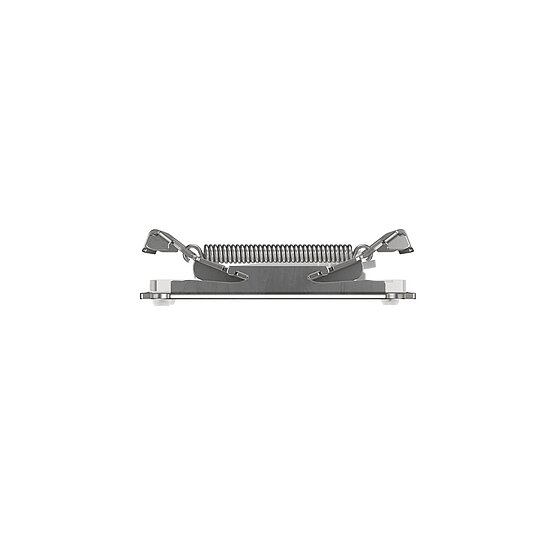

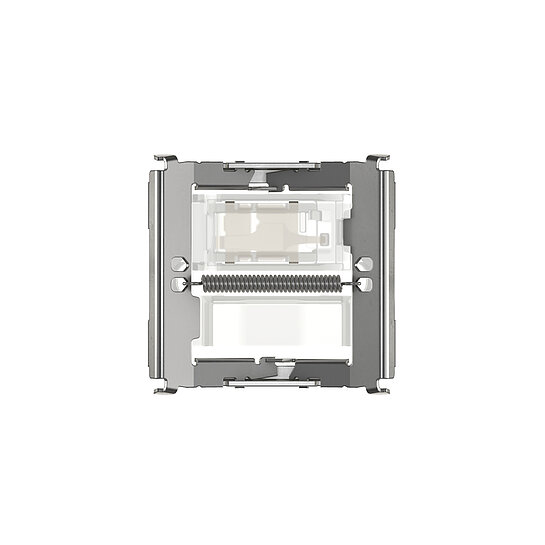

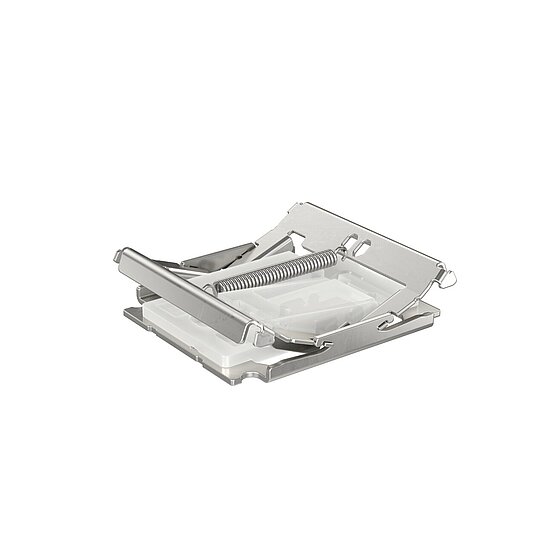

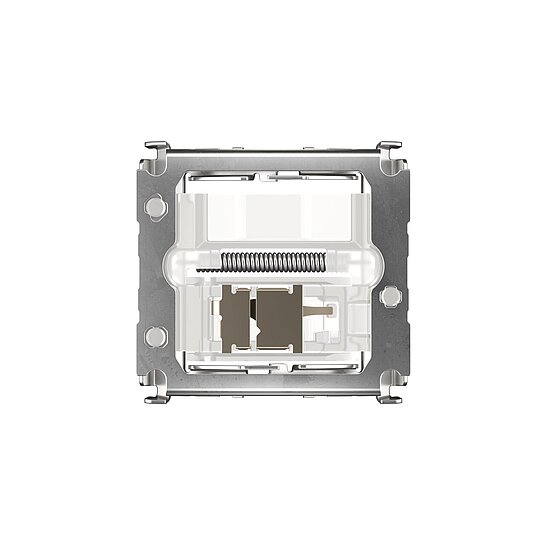

Inside CHERRY MX ULP TACTILE

1 SPRING

The spring’s force together with the wings are defining the real mechanical feeling in this ultra thin form factor.

2 WINGS

Stainless steel for wings and spring makes the switch robust and ensures a superior lifetime. With the preloaded tension spring it gives the user a very fast activation and a tactile feeling over lifetime. The wings are the connection to the keycap and ensure a parallel and balanced switch movement, even on off center activations.

3 ACTUATOR AND POLYMER SOCKET

The actuator defines the pre travel of the switch.

The polymer socket as CAD high precision component holds the Gold Crosspoint contact system in place and is also responsible for homogeneous illumination of the switch.

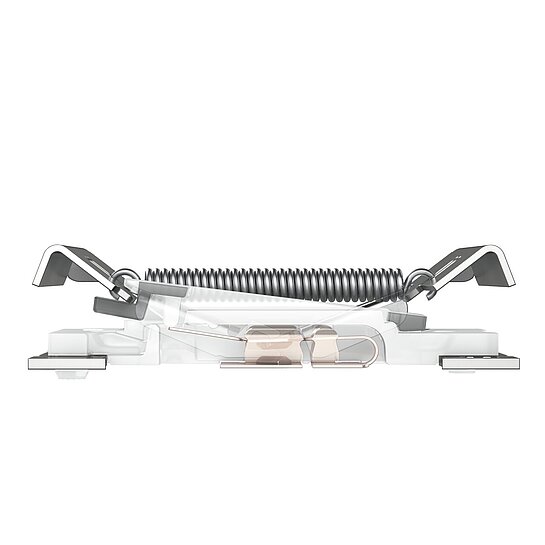

4 GOLD CROSSPOINT CONTACT SYSTEM

Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This proven CHERRY innovation and gold-plating ensures a reliable contact and makes it a true mechanical solution with ergonomic overtravel.

5 BASE FRAME

Dual-functional, the base component is made of a special, proprietary metal alloy. It holds the parts together and is the interface to the PCB with the soldering pads.
More about the original

CHERRY MX ULTRA LOW PROFILE TACTILE

The characteristics of the MX ULTRA LOW PROFILE TACTILE are not dissimilar to the MX BROWN in that they also feature tactile feedback. Thanks to the noticeable actuation force, the short travel distance and the extremely low height, the switch is suitable for applications such as notebooks, where fast reactions as well as reliable inputs in limited spaces are important.

CHERRY MX ULTRA LOW PROFILE TACTILE

Key benefits

  • Engineered and Made in Germany
  • CHERRY MX ULTRA LOW PROFILE TACTILE: High-precision mechanical switch with tactile feedback
  • Ultra-thin design
  • Industry-leading CHERRY Gold Crosspoint technology
  • Short bounce time for high switching frequency (such as for fast gaming or typing)
  • Option to use all 16.8 million RGB colours in high luminosity (scope of supply does not include SMD LED)
  • Switch designed for SMD assembly production
  • Guaranteed over 50 million keystrokes without loss of quality
MX Ultra Low Profile
MX Experience Box
10 CHERRY MX SWITCHES IN ONE BOX

CHERRY MX Experience Box

CHERRY MX Switch How does it type? Switch characteristics Keystrokes
MX BLACK powerful and direct linear (no click) > 100 mil.
MX BLACK CLEAR TOP powerful, direct and retro linear (no click) > 50 mil.
MX BLUE powerful and noticeable tactile and acoustic (with click) > 50 mil.
MX BROWN targeted and noticeable tactile (no click) > 100 mil.
MX CLEAR focused, powerful and noticeable tactile (no click) > 50 mil.
MX ERGO CLEAR targeted, smooth and noticeable tactile (no click) > 50 mil.
MX GREEN loud, robust and noticeable tactile and acoustic (with click) > 50 mil.
MX GREY purposeful, robust and noticeable tactile (no click) > 50 mil.
MX PURPLE reactive and tactile tactile (no click) > 50 mil.
MX RED smooth-running and directly linear (no click) > 100 mil.
MX SILENT BLACK powerful and quiet linear (no click + quiet) > 50 mil.
MX SILENT RED smooth-running and quiet linear (no click + quiet) > 50 mil.
MX SPEED SILVER fast and direct linear (no click) > 100 mil.
MX LOW PROFILE RED quick-witted, smooth and direct linear (no click) > 100 mil.
MX LOW PROFILE SPEED quick-witted, fast and direct linear (no click) > 100 mil.
MX ULP CLICK ultra-low profile, clicky and noticeable tactile and acoustic (with click) > 50 mil.
MX ULP TACTILE ultra-low profile, focused and noticeable tactile (no click) > 50 mil.
CHERRY MX are the best switches on the market

Propiedades

Propiedades de la mecánica instalada.

Color del taqué no
Sistema de contacto MX Gold Crosspoint

Volumen de suministro

Número de artículo SMD LED
LMX6C-T3NB
EAN:
sí
MX6C-T3NB
EAN: 4025112097270
sí
