Enfocada, robusta y notable
CHERRY MX GREY
El CHERRY MX GREY es una versión ligeramente modificada del CHERRY MX BROWN. La característica de este interruptor táctil es una respuesta perceptible y silenciosa. El equivalente gris ofrece una mayor fuerza de accionamiento en comparación con la variante marrón. El robusto y exótico extranjero es un interruptor popular entre los entusiastas.
Destacados
- Características de conmutación táctil
- Fuerza de operación de 80 cN
- Recorrido previo de 2,0 mm
- Recorrido total de 4,0 mm
- > 50 millones de pulsaciones de teclas
- Sin clic
The Original

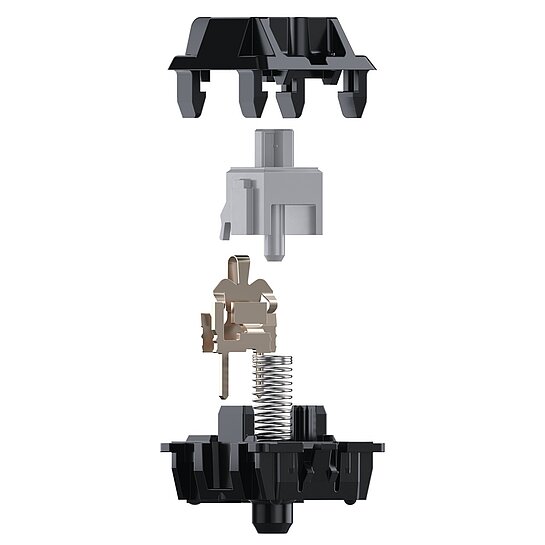

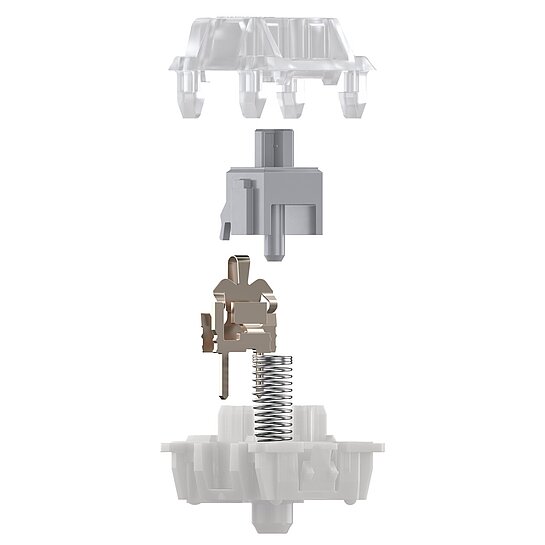

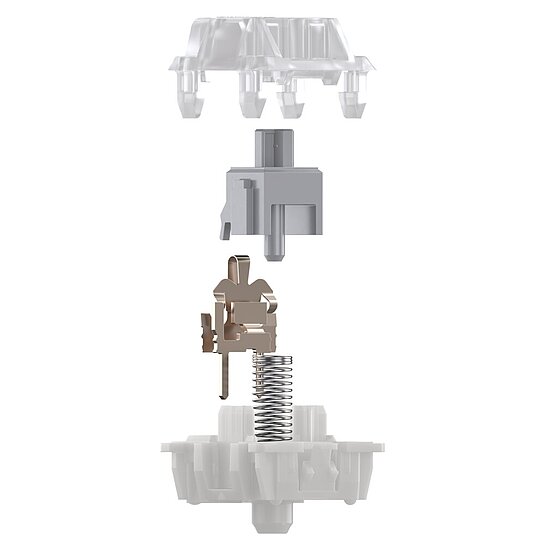

Inside CHERRY MX GREY
1 UPPER HOUSING
Upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX keyswitch’s switching mechanism housing.In the "MX RGB" version, CHERRY Refract technology is integrated into the component: A computer-calculated lens set that uses active light refraction to direct the illumination from the SMD LED on the circuit board into the keycap without loss.
2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the Cherry MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the stem.This grey switching slide is responsible for the tactile switch characteristics of the CHERRY MX GREY. Due to the bulge on the TLS Surface, the switch sends a noticeable feedback, which communicates the exact position of the trigger to the user.
3 GOLD CROSSPOINT CONTACT
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch and the basis of its incredible reliability and durability. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This unique CHERRY innovation and ornate gold-plating make the electrical contact enclosure self-cleaning and gives the keyswitch permanent protection against corrosion, guaranteeing the keyswitch for more than 50 million operations.4 PRECISION COIL SPRING
The keyswitch’s coil spring pressure resistance is the CHERRY MX’s sparring partner for your fingers. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force.5 HOUSING BASE

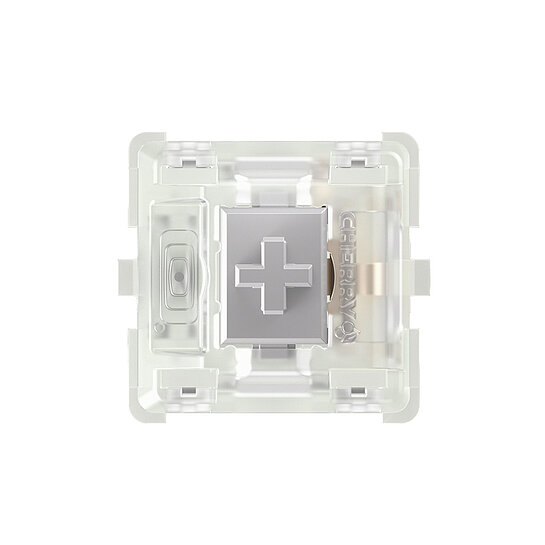

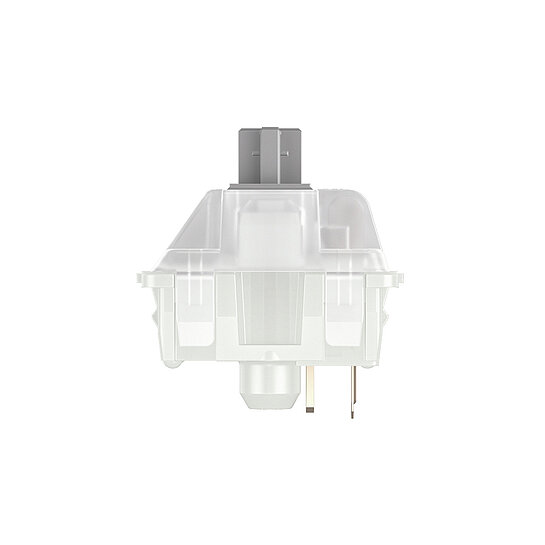

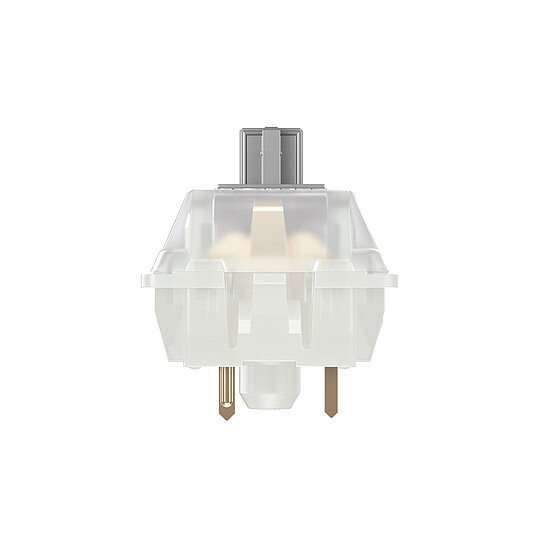

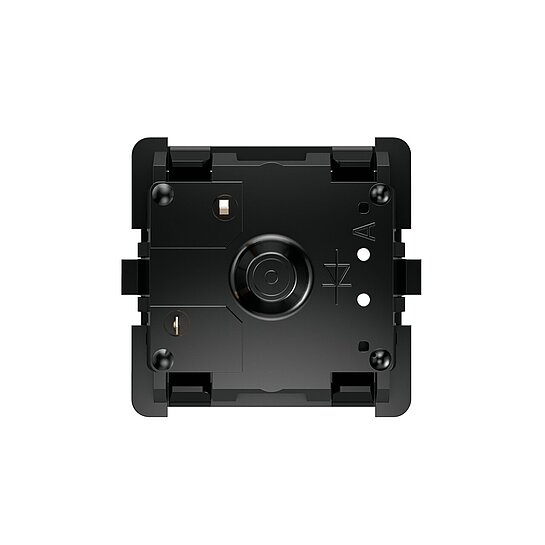

Dual-functional, the housing base component is made of plastic polymer and glass fibre. The inner part forms the mounting for the CHERRY MX keyswitch’s switching mechanism. The outer part is both the base and mounting surface for CHERRY’s mechanical keyboards.In the "MX RGB" version, the lower part of the housing is translucent and has a recess for the SMD LED on the circuit board.
More about the original
CHERRY MX GREY
The CHERRY MX GREY is a slightly modified version of the CHERRY MX BROWN. The characteristic of this tactile switch is featured by a noticeable and noiseless feedback. The grey equivalent offers an increased actuation force compared to the brown variant. The robust exotic foreigner is a popular switch for enthusiasts.
CHERRY MX GREY
Key benefits
- Engineered and Made in Germany
- CHERRY MX GREY switch: With tactile pressure point, key stroke with noticeable tactile feedback
- Safe and long-lasting reliability of switching performance and characteristics
- High-precision mechanical key switch based on the MX standard
- World exclusive CHERRY Gold Crosspoint technology
- Short bounce time for high switching frequency (such as for fast typing)
- Self-cleaning contacts
- Switch resistant to dust and dirt
- Over 50 million keystrokes with no loss of quality
CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
---|---|---|---|
MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
Propiedades
Propiedades de la mecánica instalada. |
|
---|---|
Color del taqué | gris 39 |
Propiedad de accionamiento | táctil |
Fuerza operativa | 70 cN |
Fuerza inicial | 25 cN |
Avance (mm) | 2,2 mm |
Recorrido total | 4 mm |
Sistema de contacto | MX Gold Crosspoint |
Volumen de suministro
Número de artículo | SMD LED | Pasadores de fijación | ||
---|---|---|---|---|
MX1A-D1NA EAN: 4025112102967 |
||||
MX1A-D1NN EAN: |
no | sin clavijas - montaje en panel frontal | ||
MX1A-D1NW EAN: |
no | con clavijas - montaje en placa de circuito impreso |
