CHERRY MX BLACK CLEAR-TOP
El MX BLACK CLEAR-TOP es una nueva versión del favorito de la comunidad "MX Nixie", que se fabricó para Nixdorf Computer AG en los años 80. Además de la carcasa superior lechosa, el interruptor se caracteriza por una caracterÃstica de conmutación lineal, un resorte dorado y una fuerza de accionamiento ligeramente mayor. El MX BLACK CLEAR-TOP también está disponible en una versión prelubricada. Esto hace que el interruptor sea adecuado para fanáticos de lo retro, mecanógrafos frecuentes, jugadores y usuarios que valoran las caracterÃsticas de conmutación lineal, asà como una buena acústica.
Destacados
- CaracterÃsticas de conmutación lineal
- Fuerza de operación de 63,5 cN
- Recorrido previo de 2,0 mm
- Recorrido total de 4,0 mm
- > 50 millones de pulsaciones de teclas
- Sin clic
Inside CHERRY MX BLACK CLEAR-TOP
1 UPPER HOUSING
Upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX keyswitch’s switching mechanism housing. The MX Black Clear-Top also features a milky case top to make it easier to differentiate the switch from the regular MX Black.2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the Cherry MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the stem.This black switching slide is responsible for the linear switch characteristics of the CHERRY MX BLACK CLEAR-TOP. Due to the straight TLS surface, the switch triggers directly.
3 GOLD CROSSPOINT CONTACT
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch and the basis of its incredible reliability and durability. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This unique CHERRY innovation and ornate gold-plating make the electrical contact enclosure self-cleaning and gives the keyswitch permanent protection against corrosion, guaranteeing the keyswitch for more than 50 million operations.4 PRECISION COIL SPRING
The keyswitch’s coil spring pressure resistance is the CHERRY MX’s sparring partner for your fingers. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force. The MX Black Clear-Top comes with a gold-colored spring.5 HOUSING BASE

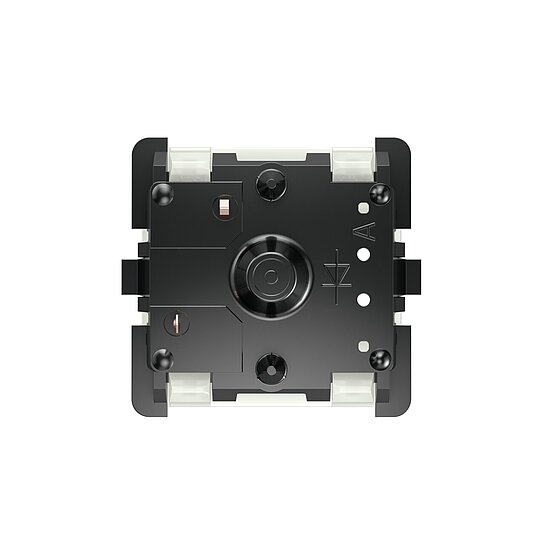

Dual-functional, the housing base component is made of plastic polymer and glass fibre. The inner part forms the mounting for the CHERRY MX keyswitch’s switching mechanism. The outer part is both the base and mounting surface for CHERRY’s mechanical keyboards.CHERRY MX BLACK CLEAR-TOP
The MX BLACK CLEAR-TOP is a re release of the community favorite "MX Nixie" which was manufactured for Nixdorf Computer AG in the 80s. In addition to the milky top housing, the switch is characterized by a linear switching characteristic, a golden spring and a slightly increased actuation force. The MX BLACK CLEAR-TOP is also available as pre-lubed version. This makes the switch suitable for retro fans, frequent typists, gamers and users who value linear switching characteristics as well as good acoustics.
Key benefits
- Engineered and Made in Germany
- CHERRY MX BLACK CLEAR-TOP switch: Without pressure point, linear actuation – switching function with a defined force of approx. 63,5cN without contact feedback
- Safe and long-lasting reliability of switching performance and characteristics
- High-precision mechanical key switch based on the MX standard
- Special milky top and black bottom housing
- World exclusive CHERRY Gold Crosspoint technology
- Short bounce time for high switching frequency (such as for fast typing)
- Self-cleaning contacts
- Switch resistant to dust and dirt
- Over 50 million keystrokes with no loss of quality
CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
---|---|---|---|
MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
Propiedades
Propiedades de la mecánica instalada. |
|
---|---|
Color del taqué | negro |
Propiedad de accionamiento | lineal |
Fuerza operativa | 63,5 cN |
Fuerza inicial | 30 cN |
Fuerza final | 110 cN |
Avance (mm) | 2 mm |
Recorrido total | 4 mm |
Sistema de contacto | MX Gold Crosspoint |
