Controllable and inductive

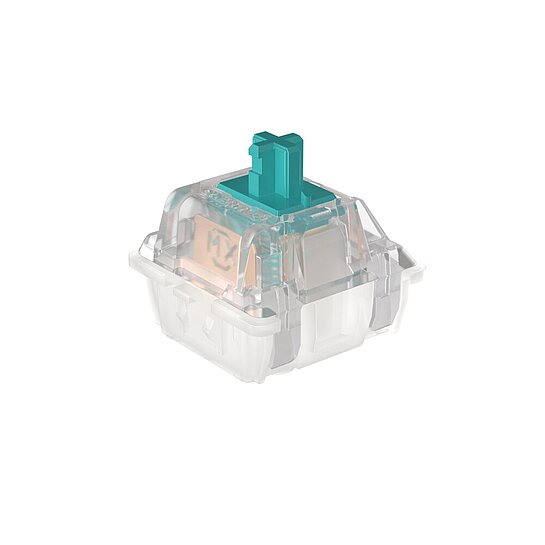

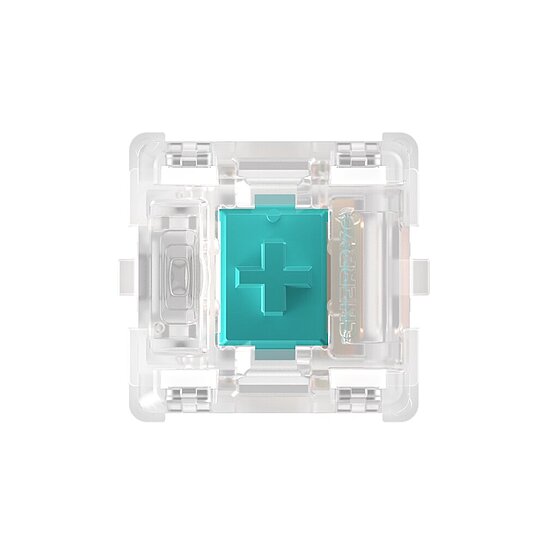

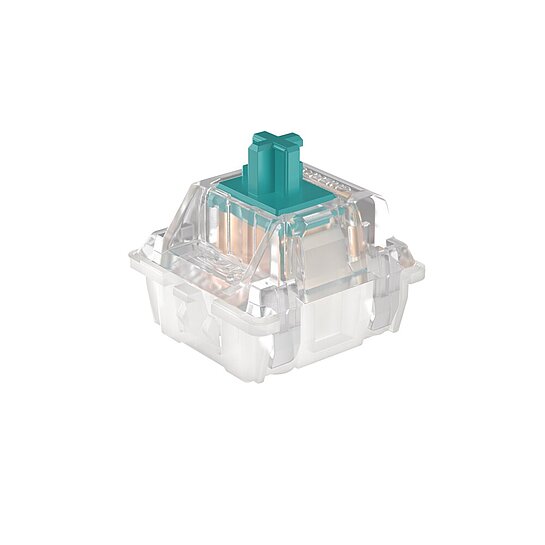

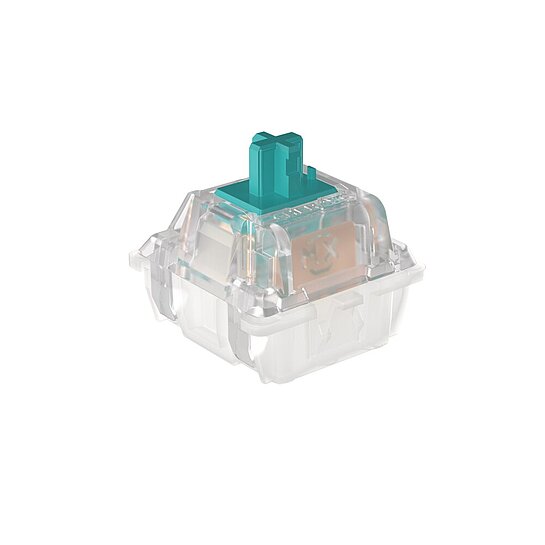

CHERRY MX MULTIPOINT CYAN
This high-precision, analog CHERRY switch is based on the inductive technology. The CHERRY MX MULTIPOINT CYAN uses a progressive spring to maintain full control for the user while traveling through all the way down during the key press.
Hoogtepunten
- Progressive operation characteristics
- Pre travel adjustable by software
- 4.0 mm total travel
- 28.8 cN initial force
- 73.7 cN end force
- > 200 mil. actuations
- Lubricated
- Hot-swap
The Original

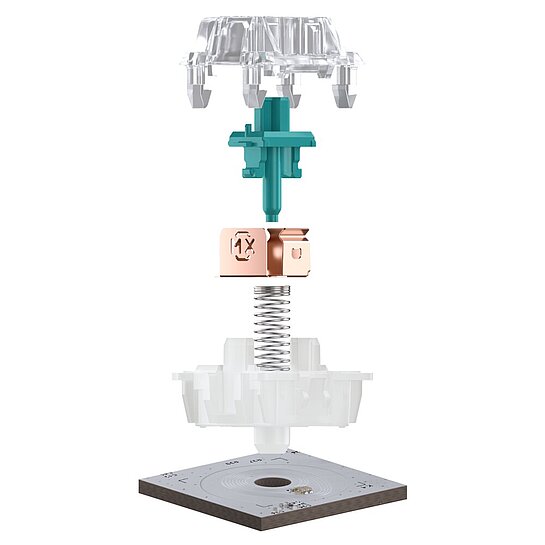

Inside CHERRY MX MULTIPOINT CYAN
1 UPPER HOUSING
The upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX switching mechanism housing.CHERRY Refract technology is integrated into the component: A computer-calculated lens set that uses active light refraction to direct the illumination from the SMD LED on the circuit board into the keycap without loss.
2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the CHERRY MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the cyan stem.3 ACTUATOR
The metal actuator element is what makes the MX MULTIPOINT analog: it disturbes the electro-magnetic field created by the coil on the PCB and it's this disturbance which then gets precisely measured to read out how far the switch has been pressed.4 PRECISION COIL SPRING
The MX MULTIPOINT CYAN’s spring features a new progressive resistance with increasing resistance during the way of travel. This provides an optimal control and haptic on every point of the stem’s travel. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force.5 HOUSING BASE

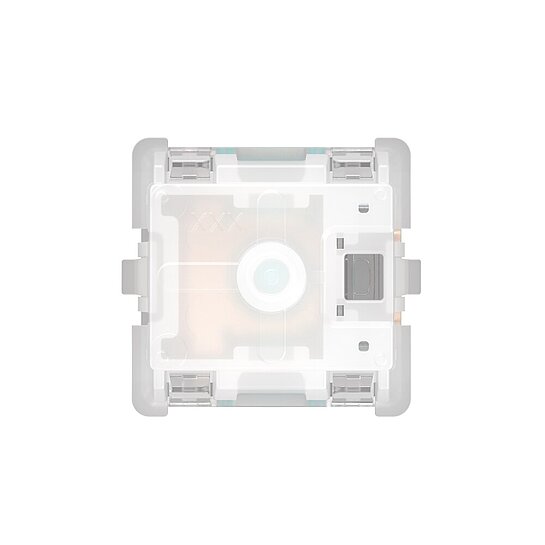

Dual-functional, the housing base component is made of a POM derivate, ensuring an ultra-smooth switch feeling. The inner part forms the mounting for the CHERRY MX switching mechanism. The outer part is both the base and mounting surface for mechanical keyboards.The bottom housing is translucent and has a recess for the SMD LED on the circuit board.
6 LUBRICATION
The MX MULTIPOINT CYAN is factory lubricated in a special process, making sure only the required parts receive the grease without drowning the switch in it.More about the original
CHERRY MX MULTIPOINT CYAN
This high-precision, analog CHERRY switch is based on the inductive technology. The CHERRY MX MULTIPOINT CYAN uses a progressive spring to maintain full control for the user while traveling through all the way down during the key press.
CHERRY MX MULTIPOINT CYAN
Key benefits
- Engineered in Germany
- CHERRY MX MULTIPOINT RGB CYAN: Progressive travel
- High-precision inductive switch with multiple actuation points
- Over 200 million keystrokes with no loss of quality
- Hot swappable within the MX MULTIPOINT series
- Designed for use with SMD LEDs (RGB or single color)
- Stem compatible with regular MX-style key caps
- More consistent lighting throughout the keycap due to optimized switch design
- Very smooth typing operation
- Switch resistant to dust and dirt
CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
---|---|---|---|
MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
Omvang van de levering
Artikelnummer | Kleur | ||
---|---|---|---|
MXID-P1NA EAN: 4025112103018 |
Paars |
